| Place of Origin: | China |
| Brand Name: | sanying |
| Certification: | ISO9001 |
| Model Number: | ABL tube |
| Minimum Order Quantity: | 100,000 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner bag and carton |
| Delivery Time: | 35 days is required for the 1st order. 30 days is required for repeat orders. |
| Payment Terms: | Irrevocable LC at sight or TT in advance |
| Supply Ability: | 350000pcs/day |
| Material: | ABL Toothpaste Laminated Tube Packaging | Thickness: | 220 |
|---|---|---|---|
| Web Color: | Silver | Printing: | Offset Printing |
| Diameter: | 28mm | Length: | 139.7mm |
| Shoulder: | S13 Thread | Orifice: | 8mm |
| Top Seal: | Easy Tear AL Top Seal | Cap: | Small Screw Cap |
| Highlight: | toothpaste packaging,tooth paste tube |
||
SanYing uses lamination technology instead of the traditional extrusion technique for the tube making process. This helps reduce the thickness of the tubes, allows for better printing techniques, and for different material barriers to be used.Using less material for production because of the reduced thickness helps reduce the overall use of plastics in packaging.This helps promote a more sustainable enveronment.
★Usage
Can be used for toothpaste tube, food tube, pharmaceutical tube, industrial and cosmetic tube etc.
★Options on tube size
| Tube Diameter | Tube length | ||||||||||||||||
| Inch | mm | All Sanying tube lengths are for reference only. They may be adjusted in accordance with customer requirement. Tube length in inches | |||||||||||||||
| 1/2" | 12.7mm | ||||||||||||||||
| 5/8" | 16mm | ||||||||||||||||
| 3/4" | 19mm | 2.0'' | 2 4/9'' | 3 1/4'' | 4 1/11'' | ||||||||||||
| 7/8" | 22mm | 1 4/5'' | 1 1/6'' | 2 3/4'' | 3 1/3'' | 3 14/15'' | 4 1/2'' | ||||||||||
| 1" | 25mm | 1 25/26'' | 2 4/9'' | 2 11/12'' | 3 1/3'' | 3 3/4'' | 4 2/3'' | 5 7/12'' | 6 1/2'' | ||||||||
| 1 1/8" | 28mm | 1 1/6'' | 2 6/11'' | 2 11/12'' | 3 1/3'' | 4'' | 4 8/11'' | 5 3/7'' | 6 1/2'' | ||||||||
| 1 3/16" | 30mm | 2 3/8'' | 2 2/3'' | 3'' | 3 8/13'' | 4 1/4'' | 4 5/6'' | 5 3/4'' | 7 1/4'' | ||||||||
| 1 1/4" | 32mm | 2 4/9'' | 2 5/7'' | 3 1/4'' | 3 3/4'' | 4 3/8‘’ | 5 1/5‘’ | 6 3/5'' | 7 7/9'' | ||||||||
| 1 3/8" | 35mm | 3'' | 3 5/11'' | 3 14/15'' | 4 2/3'' | 5 3/4'' | 6 6/7'' | 8'' | |||||||||
| 1 1/2" | 38mm | ||||||||||||||||
| 1 4/7" | 40mm | 3 1/3'' | 3 3/4'' | 4 8/11'' | 5 7/12'' | 6 1/2'' | 8 1/6'' | ||||||||||
| 1 28/29" | 50mm | 4 3/22'' | 4 2/3'' | 5 3/4'' | 6 6/7'' | 7 7/8'' | |||||||||||
| 2 11/30'' | 60mm | 4 | 4 7/9'' | 5 1/2'' | |||||||||||||
| Approx.vol.fl.oz. | 0.14 | 0.25 | 0.35 | 0.53 | 0.70 | 0.88 | 1.06 | 1.41 | 1.76 | 2.11 | 2.64 | 3.52 | 4.40 | 5.28 | 7.04 | 8.80 | |
| Approx.vol.grams. | 4.2 | 7.0 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 40.0 | 50.0 | 60.0 | 75.0 | 100.0 | 125.0 | 150.0 | 200.0 | 250.0 | |

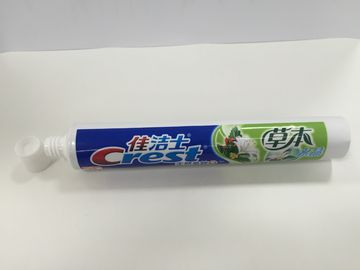

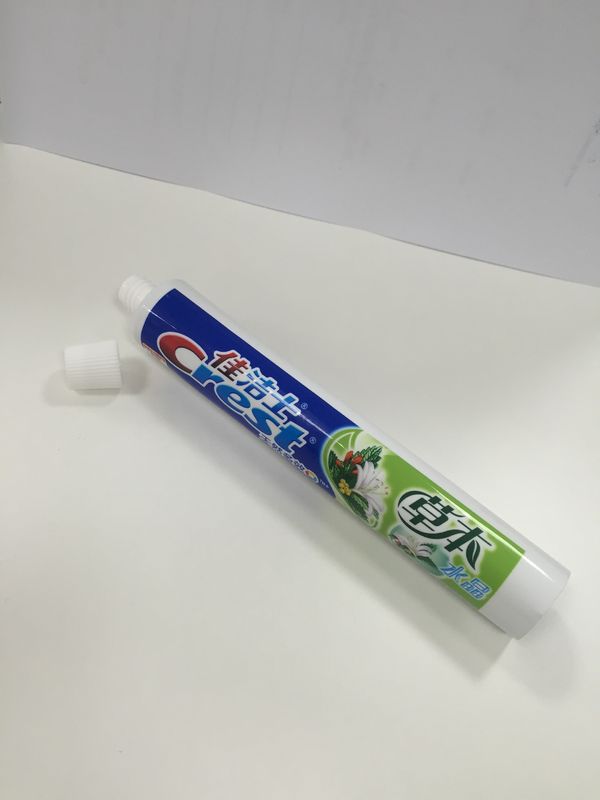

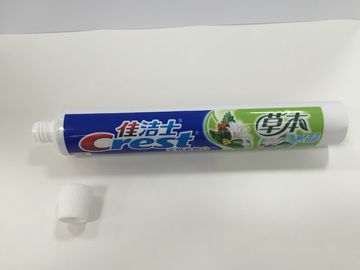

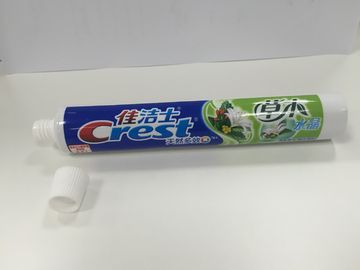

Tube Detail
